Information architecture deliverables

UXbeam · Published October 8, 2026

Information architecture deliverables are the documents, diagrams, records and specifications that capture decisions about how content is grouped, labelled, connected and maintained, together with the evidence behind those decisions. These are the usual ones, grouped by what they are for:

UnderstandContent inventory and audit: what exists, and what should happen to each item
StructureSitemap or structure specification: groups, hierarchy and labels · Taxonomy and metadata · Content model
Research evidenceResearch and validation findings: card-sort and tree-test evidence for the structure
SpecifyNavigation specification · Migration map and redirects
Keep it workingDecision log and governance

The structure specification sits at the centre: most of the others either feed it or are built from it. Downstream, wireframes apply the structure to page and navigation layouts, while user flows show how tasks move across screens; From sitemap to wireframe covers that step.

Few projects need all of these. A small greenfield site may need only a sitemap and simple navigation rules; an existing site may also need an inventory. A CMS migration usually needs most of the list. Choose your set shows which apply to which kind of project.

Use the five-question test to decide whether a proposed deliverable belongs in your project.

If a structure already exists and you need to find out what is wrong with it, start with an information architecture assessment.

Choose your set

The badge shows the usual answer. The note underneath says when it changes.

Deliverable	Small site	Redesign or consolidation	App or product	Large catalogue	CMS migration or multi-site
Content inventory and audit	Depends on projectOnly if a site already exists; a new site has nothing to inventory.	Usually coreYou cannot decide what to merge or retire without it.	Depends on projectList features and screens rather than pages.	Depends on projectInventory editorial and category pages when they exist; product records usually come from product data.	Usually coreEvery page needs a disposition before anything moves.
Sitemap or structure specification	Usually coreEven a small structure makes the grouping and labels explicit before design.	Usually coreIt is the structure designers, developers and content owners work from.	Usually coreDescribe screens, objects and settings rather than pages.	Usually coreShoppers browse by category, so the hierarchy has to be specified.	Usually coreEach migrated page needs a place in it.
Taxonomy and metadata	Usually not neededA handful of pages rarely needs controlled terms.	Depends on projectNeeded when content is tagged, filtered or reused.	Depends on projectNeeded for filterable lists, tags or search.	Usually coreFilters and facets depend on it.	Depends on projectUsually core for shared multi-site vocabularies; for a like-for-like CMS move, carry over only the tags and categories that still matter.
Content model	Depends on projectOnly if pages share structured types, such as events or staff profiles.	Depends on projectNeeded when the CMS changes or content is reused across pages.	Depends on projectOften covered by the product's data model; check its names against the IA labels.	Usually coreProduct, category and attribute types drive the templates.	Usually coreThe new CMS is configured from it.
Research and validation findings	Depends on projectA tree test helps when labels are disputed.	Usually coreEvidence for the new structure before it is built.	Depends on projectNeeded where the placement of settings, reports or features is uncertain.	Usually coreOverlapping categories need evidence for where items go.	Depends on projectNeeded when the structure changes; not for a like-for-like move.
Navigation specification	Depends on projectA short list is enough when navigation is one menu and a footer.	Usually coreDevelopers need it to build menus consistently.	Usually coreRole-based and settings navigation need written rules.	Usually coreLarge menus and filters need rules for what appears where.	Usually coreMenus are rebuilt in the new CMS.

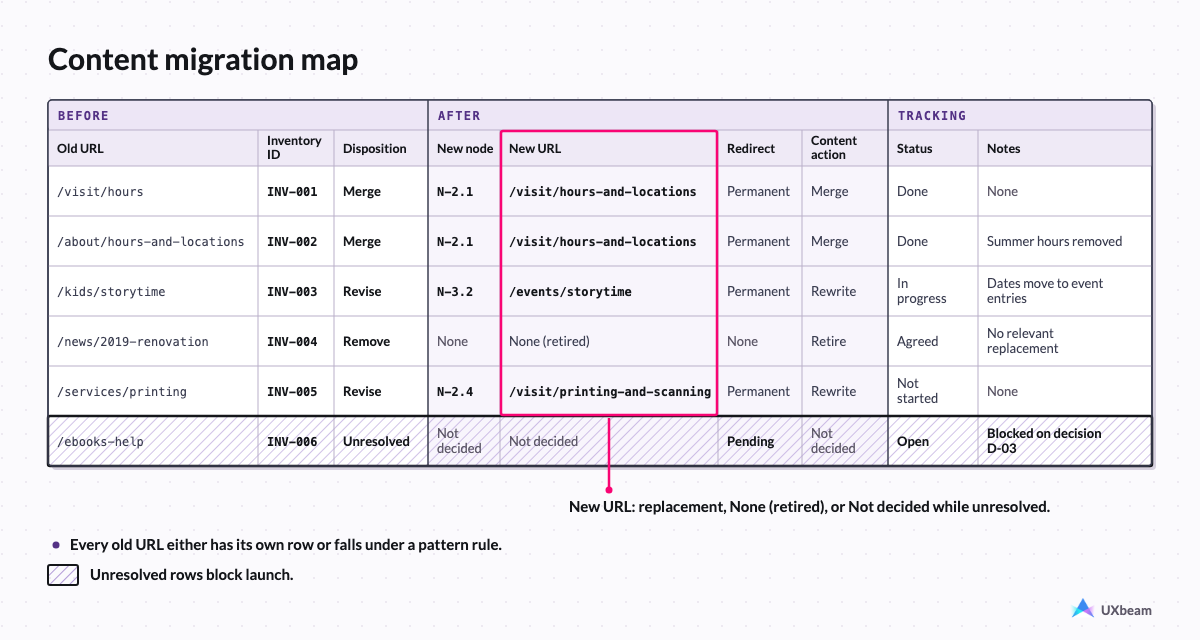

Migration map and redirects	Depends on projectOnly if old pages exist that people link to or bookmark.	Depends on projectNeeded when URLs or page locations change.	Usually not neededRarely needed unless the app has public URLs that change.	Depends on projectNeeded when product, category or other URLs with inbound links or search traffic change.	Usually coreIt is the main working document of the migration.
Decision log and governance	Depends on projectA short decision note can be enough.	Usually coreRecords why the structure changed, for the next team.	Usually coreSets rules for where new features go.	Usually coreSomeone has to own new categories and terms.	Usually coreMany editors need rules once the project team leaves.
Search synonyms	Usually not neededSkip it when the site has little or no search.	Depends on projectUseful when search logs show people using different words.	Depends on projectOnly if the app has search.	Usually coreWhen search is a primary way into the catalogue, shoppers may use terms that differ from catalogue labels.	Depends on projectCarry existing synonyms over if search exists.
Object model	Usually not neededA simple page hierarchy is often enough unless the site is object- or data-driven.	Depends on projectOnly for complex, data-driven sections.	Usually coreObjects and their relationships shape the navigation.	Depends on projectUse it when products, categories or other entities need relationships beyond the content model.	Usually not neededThe content model usually covers migrated entities; add an object model only when application or product relationships need separate treatment.

On a solo project one person may make every deliverable. Keep each one short, but keep a record of the decisions and their rationale so the next person can understand what changed and why.

Common mistakes

Treating the sitemap as the whole information architecture. A sitemap records the hierarchy^[3]. Taxonomy, navigation rules and the reasons behind the structure need their own records. Structure specification
Calling an inventory an audit. A list of what exists does not say what to keep, merge or remove. Inventory and audit
Losing the reasons between research and structure. Without a decision log, later teams cannot see why structural choices were made. Decision log
Treating card-sort output as proof the structure works. It shows how participants grouped items. Whether people can find things needs a tree test or another findability study. Research and validation findings
Handing developers a diagram they cannot build from. Content types, fields and navigation rules have to be written down. Content model · Navigation specification
Freezing documents that are still changing. Migration maps can change until launch; taxonomies can continue changing afterward. Give maintained deliverables an owner and a current version. Migration map

The deliverables

The map shows which deliverable feeds which, and what passes between them. In practice, several are drafted at the same time and revised as evidence arrives.

The examples on this page follow one fictional project, a city library website at library.example.org, so you can trace an item through them by its ID: INV- for inventory rows, N- for structure nodes, T- for taxonomy terms, D- for decisions.

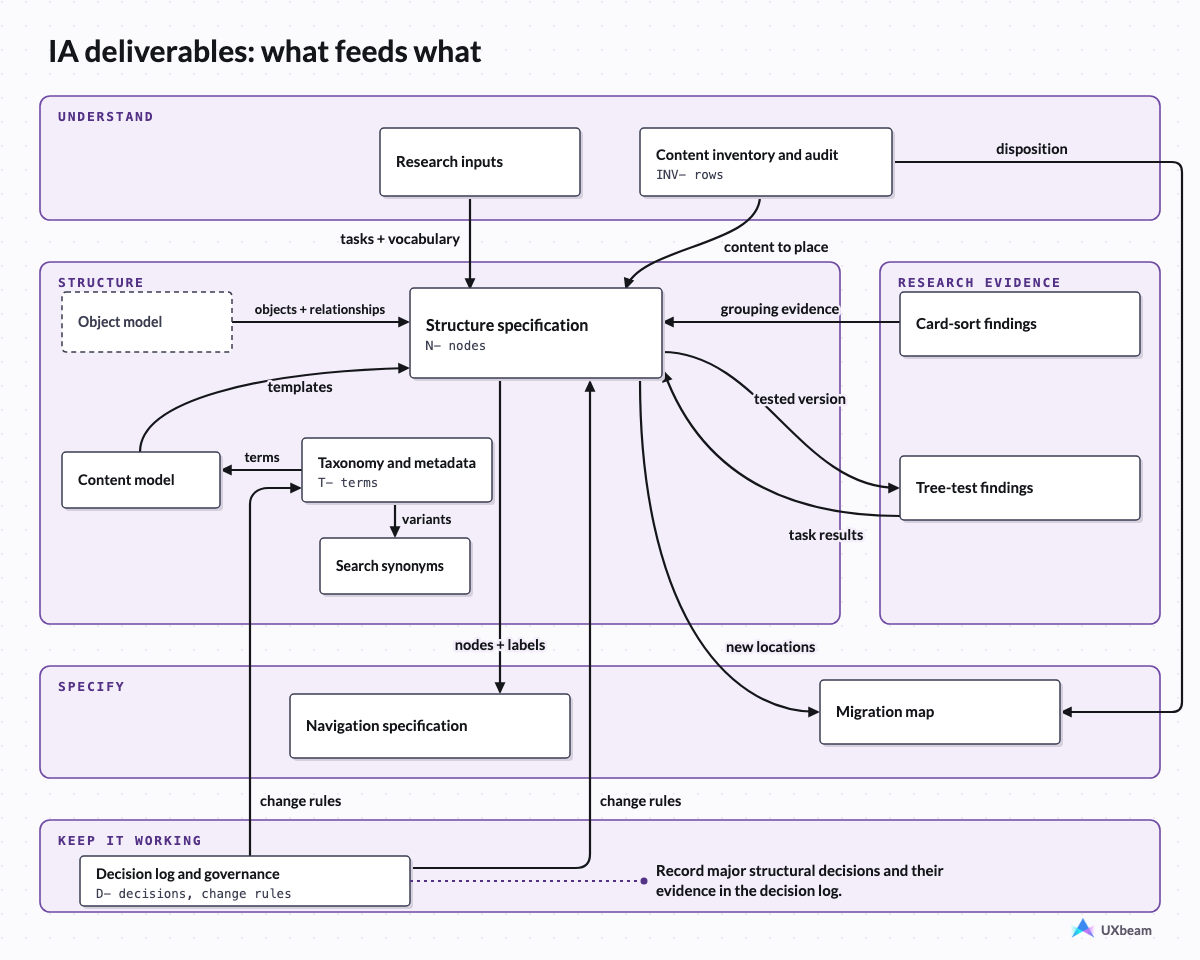

Diagram of information architecture deliverables in five groups, with labelled arrows showing what each deliverable feeds — Arrows show what each deliverable feeds, not the order of work.

Text version of the map

Content inventory and audit feeds the migration map (a disposition for each item) and the structure specification (the content to place).
Research inputs feed the structure specification (tasks and the words people use).
Card-sort findings feed the structure specification (grouping and label evidence for candidate versions).
The structure specification feeds tree-test findings (the version tested); tree-test findings feed back into the structure specification (task results and revisions).
The structure specification feeds the navigation specification (nodes and labels to show) and the migration map (new locations).
The taxonomy feeds the content model (values for classification fields) and search synonyms (variant terms).
The content model feeds the structure specification (page templates).
The object model feeds the structure specification (objects and relationships).
Record major structural decisions and their evidence in the decision log. Governance rules feed back into the structure specification and the taxonomy (change rules).

Names that get confused

Name	What it is	Often confused with
Sitemap or structure specification	The hierarchy, its groups and their labels	The navigation, which shows only part of the structure; an XML sitemap, which is a file for search engines
Navigation specification	Which parts of the structure appear in which menus, and how they behave	The sitemap
Taxonomy	Controlled terms used to tag, filter and relate content	The sitemap's section names
Content model	Content types, their fields, and the links between types	Page templates, which display content types
Content inventory	A list of what exists	A content audit, which judges each item
User flow	The steps of one task across screens	The sitemap, which has no sequence

Content inventory and audit

What it is

A spreadsheet with one row per page or content item. The inventory columns record what exists. The audit columns record a judgement on each item and what will happen to it.

Decision it informs

What to keep, revise, merge, remove or create, and where each item goes in the new structure.

Typical format

A spreadsheet. Keep it separate from the migration map and link the two by the inventory ID.

Made by → acted on by

Usually made by the IA or content lead with content owners; used to build the structure and migration map.

Ready when

Every row has an owner, or belongs to a section with a named owner.
Every row has a disposition, or is marked Unresolved with a reason.
Merge rows name a single target.
Every inventory row with an existing URL appears in the migration map or falls under a pattern rule.

Weak vs good

Weak: a crawler export of URLs and titles with no owner or decision. Good: every row has an owner and a disposition, and unresolved rows say why.

Needed for

Usually core for: redesign or consolidation, CMS migration or multi-site. See the reasons in the matrix

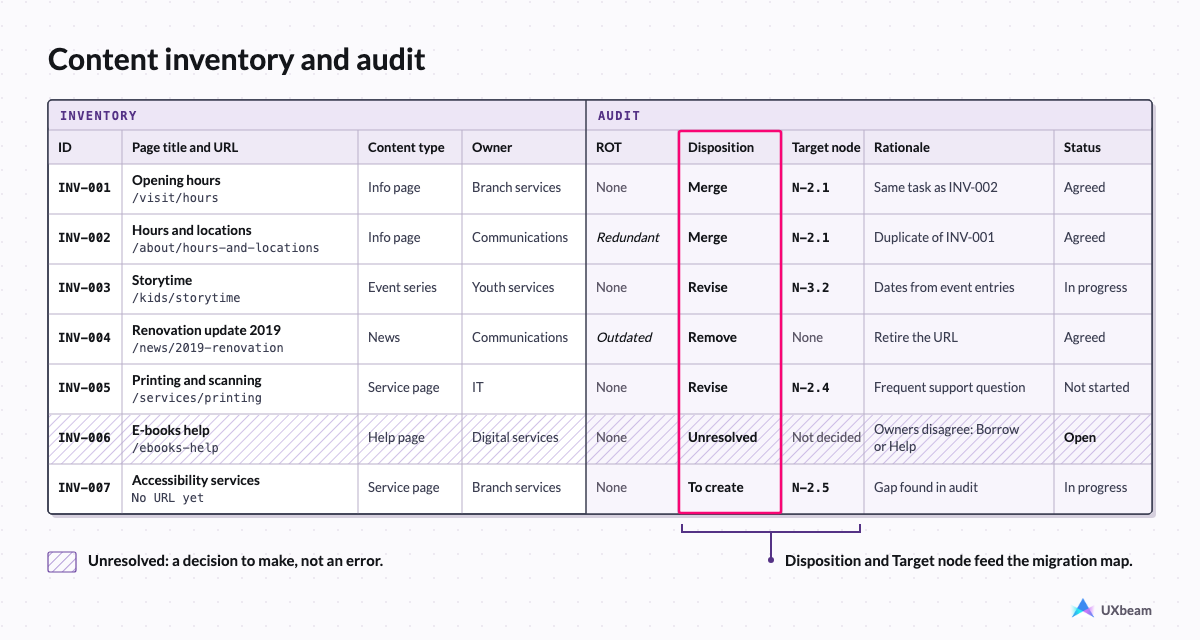

Content inventory and audit spreadsheet: inventory columns, a disposition for each item and its target node in the new structure

The ROT flag (redundant, outdated, trivial) is a diagnosis. Disposition is the action. Keep them in separate columns.

View copyable table

ID	URL	Page title	Content type	Current section	Owner	Last updated	Audience / task served	Quality note	ROT flag	Disposition	Target node	Rationale	Status
INV-001	https://library.example.org/visit/hours	Opening hours	Info page	Visit us	Branch services	2026-03	Visitors checking when a branch is open	Accurate		Merge	N-2.1	Same task as INV-002; one page per task	Agreed
INV-002	https://library.example.org/about/hours-and-locations	Hours and locations	Info page	About	Communications	2023-11	Same as INV-001	Summer hours out of date	Redundant	Merge	N-2.1	Duplicate of INV-001	Agreed
INV-003	https://library.example.org/kids/storytime	Storytime	Event series	Kids	Youth services	2025-09	Parents of young children	Dates edited by hand in body text		Revise	N-3.2	Dates should come from event entries	In progress
INV-004	https://library.example.org/news/2019-renovation	Renovation update 2019	News	News	Communications	2019-06	No current task	Project finished	Outdated	Remove	None	No current purpose; retire the URL	Agreed
INV-005	https://library.example.org/services/printing	Printing and scanning	Service page	Services	IT	2024-02	Visitors who need to print	Prices unclear		Revise	N-2.4	Frequent support question	Not started
INV-006	https://library.example.org/ebooks-help	E-books help	Help page	(no parent)	Digital services	2022-05	Members borrowing e-books	Reachable only through search		Unresolved	Not decided	Owners disagree: Borrow or Help	Open
INV-007	None	Accessibility services	Service page	None	Branch services	Not applicable	Visitors who need access support	Does not exist yet		To create	N-2.5	Gap found during audit	In progress

Download the template: Content inventory and audit (XLSX) · blank CSV. Free to use under CC BY 4.0.

Reference examples: Content Inventory and Auditing 101 [1] · How to Do a Content Audit [2]

Sitemap or structure specification

What it is

The structure itself: how content is grouped, how the groups nest, and what each one is called. A practical format uses two views: a conceptual diagram of the top levels and a structure sheet with every node.

Decision it informs

Where things live and what they are called. The organizing scheme (by topic, by task, by audience or another rule) is decided here; Organizing principles explains the options.

Typical format

A diagram for the top levels and a spreadsheet for the detail. Draw repeated pages as one stack rather than many boxes, and keep node IDs the same across versions.

Made by → acted on by

Made by the IA lead and approved by product or content owners; used by designers, developers and content owners.

Ready when

Every node has an ID and a label; every non-root node has a parent.
Labels match between the diagram and the structure sheet.
Where an inventory exists, every kept item has a target node.
The organizing scheme and the main rejected alternative are in the decision log.

Weak vs good

Weak: a box diagram of the top level only, with labels that differ from the structure sheet. Good: the diagram explains, the structure sheet records, and the organizing scheme is written down with the main alternative that was rejected.

Needed for

Usually core for: small site, redesign or consolidation, app or product, large catalogue, CMS migration or multi-site. See the reasons in the matrix

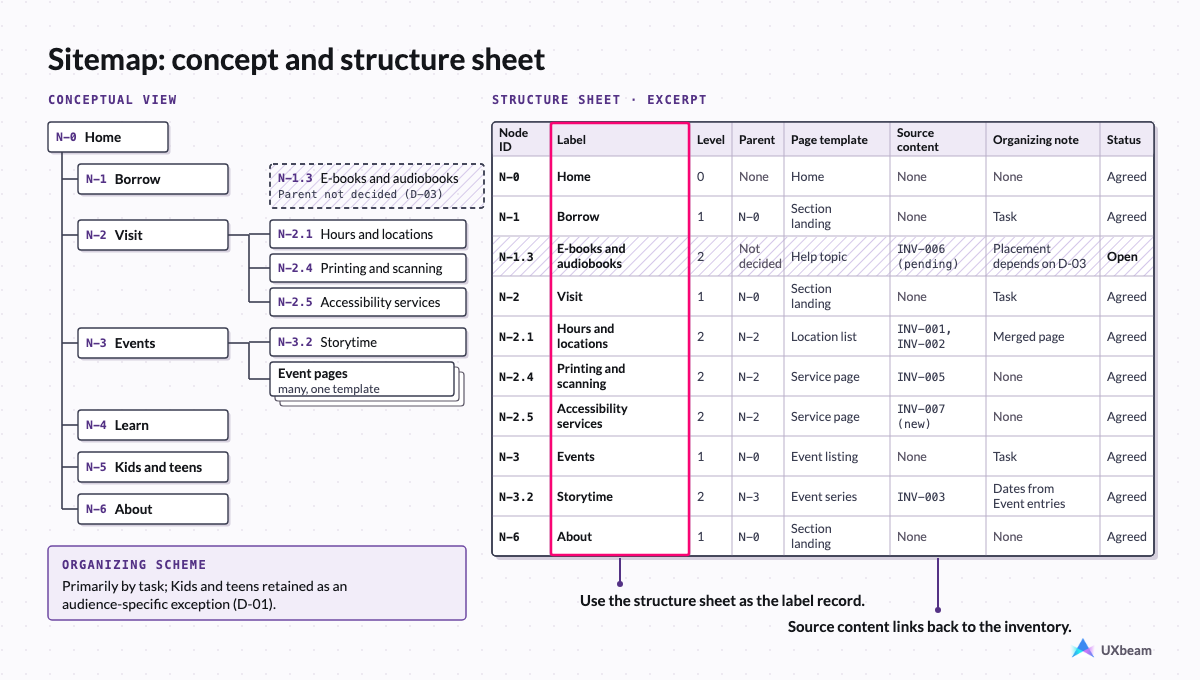

A conceptual sitemap organized primarily by task, with a Kids and teens audience-specific exception, beside a structure sheet listing node ID, label, level, parent and template

View copyable table

Node ID	Label	Level	Parent	Page template	Source content	Status
N-0	Home	0	None	Home	None	Agreed
N-1	Borrow	1	N-0	Section landing	None	Agreed
N-1.3	E-books and audiobooks	2	Not decided	Help topic	INV-006 (pending decision D-03)	Open
N-2	Visit	1	N-0	Section landing	None	Agreed
N-2.1	Hours and locations	2	N-2	Location list	INV-001, INV-002	Agreed
N-2.4	Printing and scanning	2	N-2	Service page	INV-005	Agreed
N-2.5	Accessibility services	2	N-2	Service page	INV-007 (new)	Agreed
N-3	Events	1	N-0	Event listing	None	Agreed
N-3.2	Storytime	2	N-3	Event series	INV-003	Agreed
N-6	About	1	N-0	Section landing	None	Agreed

Reference examples: Site Diagrams: Mapping an Information Space [4]

Taxonomy and metadata

What it is

A controlled list of terms for describing content, the relationships between those terms, and the metadata fields that use them.

Decision it informs

Which words describe content consistently, so it can be tagged, filtered, related and found through search^[5].

Typical format

A table of term records plus a short metadata schema. Scope notes are written for editors applying the terms, not for site visitors.

Made by → acted on by

Usually made by a taxonomy owner or content strategist; used by editors, developers and site search.

Ready when

Every active term record has a preferred term and a broader term or top-level position.
Scope notes exist where editors need help choosing between terms.
Variant terms are listed where people use other words.
Deprecated terms identify a replacement where one exists.
Every classification field names the vocabulary it uses, whether it is required, and who applies it.
Someone is named to approve new terms.

Weak vs good

Weak: a list of category names with no definitions and no owner. Good: every term has an owner and a place in the hierarchy, scope notes where the meaning is ambiguous, variants where people use other words, and a rule for adding terms.

Needed for

Usually core for: large catalogue. See the reasons in the matrix

Preferred and variant terms, plus broader, narrower and related relationships, are established controlled-vocabulary conventions; SKOS provides a standard way to represent them^[6]. Status, owner and last changed are governance fields added for the project. Whether a term may have more than one broader term is a project decision.

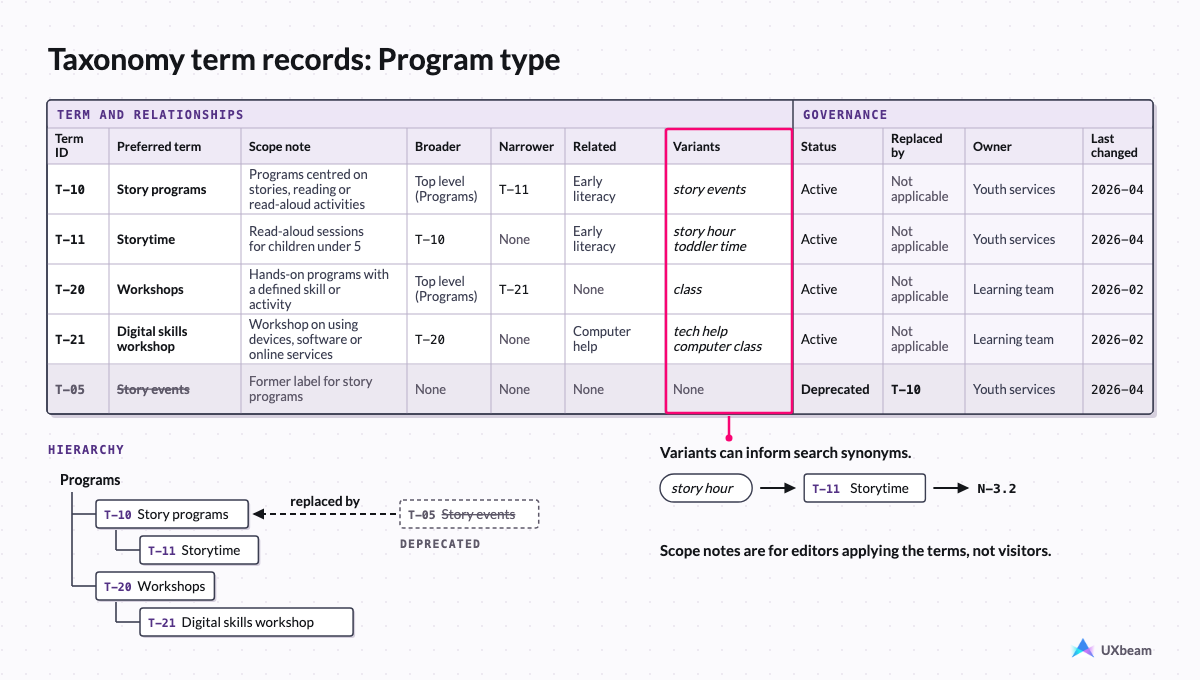

Taxonomy term records with preferred terms, variants, broader, narrower and related terms, scope notes, status and a deprecated term pointing to its replacement

View copyable table

Term ID	Preferred term	Scope note	Broader	Narrower	Related	Variants	Status	Replaced by	Owner	Last changed
T-10	Story programs	Programs centred on stories, reading or read-aloud activities	Top level (Programs)	T-11	Early literacy	story events	Active	Not applicable	Youth services	2026-04
T-11	Storytime	Read-aloud sessions for children under 5	T-10	None	Early literacy	story hour; toddler time	Active	Not applicable	Youth services	2026-04
T-20	Workshops	Hands-on programs with a defined skill or activity	Top level (Programs)	T-21	None	class	Active	Not applicable	Learning team	2026-02
T-21	Digital skills workshop	Workshop on using devices, software or online services	T-20	None	Computer help	tech help; computer class	Active	Not applicable	Learning team	2026-02
T-05	Story events	Former label for story programs	None	None	None	None	Deprecated	T-10	Youth services	2026-04

Metadata schema

Field	Values from	Required	Multiple values	Used for	Applied by
Program type	Program type vocabulary	Yes	No	Event filters; search synonyms	Event editors
Audience	Audience vocabulary	Yes	Yes	Filters; related events	Event editors
Branch	Locations list	Yes	Yes	Location filter; hours	Event editors
Topic	Subjects vocabulary	No	Yes	Related content	Any editor

Reference examples: SKOS Simple Knowledge Organization System Primer [6] · GOV.UK Taxonomy principles [7]

Content model

What it is

The content types, their fields and the relationships between types, often implemented in a CMS^[8].

Decision it informs

What structured content exists and how it is reused, so templates and the CMS can be built without guessing.

Typical format

One card or table per content type. Make the relationships between types explicit; a diagram helps.

Made by → acted on by

Often made by an IA or content strategist with a developer; used by developers and editors.

Ready when

Every type lists its fields with field type, required and repeatable settings.
Relationships between types are explicit.
Classification fields name the vocabulary they use.
Help text exists where editors need guidance.
A developer or CMS implementer has reviewed the model before build.

Weak vs good

Weak: a list of page templates with no fields. Good: types, fields, links and help text, with the source of any data that comes from another system named.

Needed for

Usually core for: large catalogue, CMS migration or multi-site. See the reasons in the matrix

This example shows types, fields, field types, required and repeatable settings, relationships and help text for editors. A CMS implementation adds more: validation rules, machine names, translation and permissions.

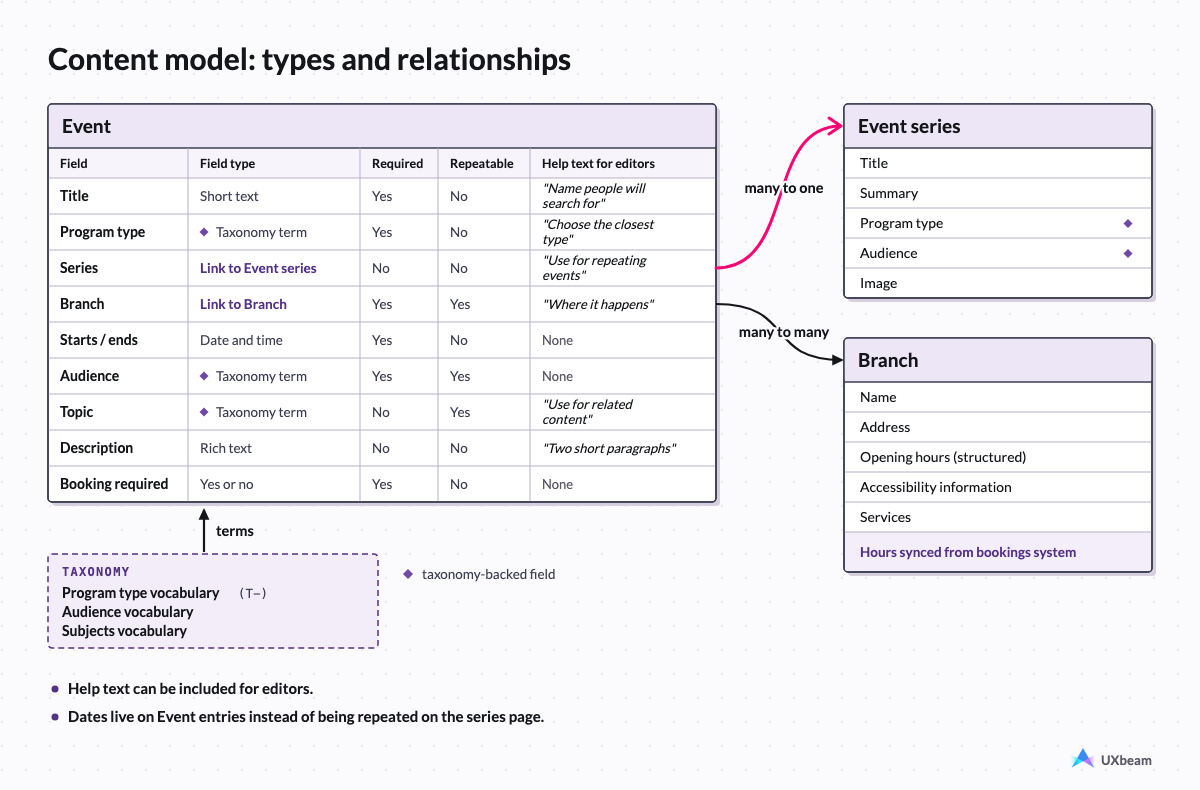

Three content types, event, event series and branch, shown as field cards with links between them

Fields of the Event content type

View copyable table

Field	Field type	Required	Repeatable	Help text for editors
Title	Short text	Yes	No	Name people will search for
Program type	Taxonomy term (Program type vocabulary)	Yes	No	Choose the closest type
Series	Link to Event series	No	No	Use for repeating events
Branch	Link to Branch	Yes	Yes	Where it happens
Starts / ends	Date and time	Yes	No	None
Audience	Taxonomy term (Audience vocabulary)	Yes	Yes	None
Topic	Taxonomy term (Subjects vocabulary)	No	Yes	Use for related content
Description	Rich text	No	No	Two short paragraphs
Booking required	Yes or no	Yes	No	None

Links between types: each Event belongs to at most one Event series; an Event can happen at several Branches. Branch opening hours come from the bookings system, which stays the source of truth. Storytime dates now come from Event entries instead of being typed into the page (INV-003).

Reference examples: Content Modelling: A Master Skill [8] · Model Your Content [9]

Research and validation findings

What it is

Summaries of what research showed about the structure. Two kinds are common: card-sort findings, about how people group and name content, and tree-test findings, about whether people can find things in an existing or proposed structure.

Evidence it provides

Card-sort findings inform candidate structures. Tree-test findings show, task by task, where people found the right place and where they ended up instead. Each supports a decision about the structure; neither is the structure.

Typical format

A useful reporting format is a table per study, with the number of participants, the date or study snapshot, and the decision each finding informed. Tree-test results are reported per task.

Made by → acted on by

Made by the researcher; used by the IA lead and whoever approves the structure.

Ready when

Each finding states the study type, sample size, and the study date or snapshot/version it comes from.
Each finding that affects the structure links to the decision or decisions it informed.
Caveats sit next to the numbers they qualify.
Tree-test results are reported per task, with no single pass mark.

Weak vs good

Weak: "most people succeeded", with no task, no count and no decision. Good: per-task results with counts, where people went instead, and the change it led to.

Needed for

Usually core for: redesign or consolidation, large catalogue. See the reasons in the matrix

Card-sort findings

UXbeam case excerpt Government services, open card sort with 20 cards, 69 participants in the analysed snapshot. From the government services case.

Finding	Evidence	Labels participants used	Implication for candidate structures
Topic-based mental model was dominant	UXbeam Mental Model Detection: 57 of 69 participants in the topic-based mental model	Housing, Education, Employment, Childcare, Care, Financial support	A topic-based candidate sitemap
A smaller action-based mental model was also detected	UXbeam Mental Model Detection: 9 of 69 participants in the action-based mental model	"Find", "Apply", "comparing and understanding options", "challenge decisions"	A second, action-based candidate sitemap to test against the first

Both mental models were detected in the same open sort and are subsets of the same 69-participant sample, not separate studies.
In a later snapshot of 82 responses, the action-based mental model was no longer detected separately.
No tree test of these two candidates is published.

Tree-test findings

UXbeam case excerpt E-commerce seller admin, an initial tree and a substantially revised iteration tested concurrently in April 2025; a later iteration followed. From the e-commerce navigation case.

Here, Direct means the participant finished at a correct destination without backtracking; Elsewhere means they finished at a wrong destination.

Task	Version	Direct	Other evidence	Interpretation / next step
Pause notifications for the weekend.	Initial	27% (16 of 59)	First clicks split: Add new 37%, Customer management center 34%, Manage orders/sales 17%	The original label split first clicks across three areas; compare a clearer label.
Pause notifications for the weekend.	Iteration 1	46% (31 of 67)	57% chose the renamed menu first	Re-test with task wording that does not repeat "Notifications".
Set up an automated email asking buyers to review their order.	Initial	9% (5 of 54)	Elsewhere 87% (47 of 54); 26 of 54 ended at the near-identical label "Auto send review request"	Resolve the two near-identical labels.
Set up an automated email asking buyers to review their order.	Iteration 1	30% (19 of 63)	The result partly reflects a corrected answer key and small task-wording edits	Keep the task unresolved; the answer-key change and small task-wording edits prevent a clean comparison.

The published case notes small wording edits to the review-email task between Initial and Iteration 1; the table uses a shortened task label for both rows.
The renamed notification menu repeats a word from the task, so the 46% result cannot be attributed to the structure alone.
Results are per task. There is no universal pass mark.

How to run and read these studies: Card sorting analysis and How tree testing works. To interpret results for a decision about an existing structure, see the assessment guide.

Navigation specification

What it is

A record of which parts of the structure appear in which navigation system, and how each system behaves.

Decision it informs

What people see in menus, section navigation, related links and utility links on each kind of page.

Typical format

A table with one row per navigation system.

Made by → acted on by

Usually made by the IA or UX designer; used by developers and designers, maintained by the web team.

Ready when

Every navigation system has a row.
Items refer to node IDs from the structure specification.
Current-page and small-screen behaviour are stated.
Who can change each system is named.
Labels match the structure specification.

Weak vs good

Weak: a mock-up of a menu with no rules. Good: for each system, what it shows, where the items come from, how it behaves on small screens and who can change it.

Needed for

Usually core for: redesign or consolidation, app or product, large catalogue, CMS migration or multi-site. See the reasons in the matrix

Global navigation exposes primary site destinations. Local navigation helps people understand where they are within a section^[10]. Contextual links sit inside content, and utility links cover tasks such as account, search and contact. Choosing navigation patterns and layouts is covered in From sitemap to wireframe.

System	What it shows	Item source	Where it appears	Current page and small screens	Who can change it
Global	N-1 to N-6; level 2 in a menu	Curated from the structure sheet	Header, every page	Current section marked; collapses behind a menu button on small screens	Web team only
Local	Children of the current section, one level	Generated from the structure sheet	Beside the content on wide screens, above it on small screens	Current page marked	Generated; never edited by hand
Contextual	Related events and pages	Generated from Topic and Audience metadata	Inside content	Same on all screen sizes	Generated; editors may pin one link
Utility	Account, Search, Contact	Fixed	Header	Search stays visible on small screens	Web team
Footer	Hours and locations, Accessibility services, Contact	Fixed	Every page	Same on all screen sizes	Web team

Reference examples: Navigate a service [11] · Side navigation [12]

Migration map and redirects

What it is

A spreadsheet that records what happens to every old URL: its replacement and redirect, its content action, or its retirement.

Decision it informs

Where each existing page goes, what happens to its content, and which old addresses redirect where. The pattern for new URLs is decided once and recorded in the decision log.

Typical format

A spreadsheet linked to the inventory by ID. Disposition comes from the inventory; Content action records what happens during the migration. It stays a working document until launch.

Made by → acted on by

Made by the content or IA lead with content owners; used by developers and editors at launch.

Ready when

Every old URL either has its own row or falls under a pattern rule.
Every row records a destination or retirement decision, or is marked Unresolved with a reason.
Redirects point only to a relevant replacement; otherwise the URL is retired according to the site's policy.
No redirect leads to another redirect.
Pattern rules for large groups of URLs, such as a whole folder, have their own rows.

Weak vs good

Weak: every retired page redirected to the home page. Good: every old URL is covered by a row or pattern rule, redirects exist only where a relevant replacement exists, each active decision has an owner and status, and unresolved rows say why.

Needed for

Usually core for: CMS migration or multi-site. See the reasons in the matrix

Migration spreadsheet mapping old URLs to new locations, with disposition, redirect and status, and an unresolved row blocking launch

View copyable table

Old URL	Old title	Inventory ID	Disposition	New node	New URL	Redirect	Content action	Owner	Status	Notes
https://library.example.org/visit/hours	Opening hours	INV-001	Merge	N-2.1	https://library.example.org/visit/hours-and-locations	Permanent	Merge	Branch services	Done	None
https://library.example.org/about/hours-and-locations	Hours and locations	INV-002	Merge	N-2.1	https://library.example.org/visit/hours-and-locations	Permanent	Merge	Communications	Done	Summer hours removed
https://library.example.org/kids/storytime	Storytime	INV-003	Revise	N-3.2	https://library.example.org/events/storytime	Permanent	Rewrite	Youth services	In progress	Dates move to event entries
https://library.example.org/news/2019-renovation	Renovation update 2019	INV-004	Remove	None	None (retired)	None	Retire	Communications	Agreed	No relevant replacement; retired per site policy
https://library.example.org/services/printing	Printing and scanning	INV-005	Revise	N-2.4	https://library.example.org/visit/printing-and-scanning	Permanent	Rewrite	IT	Not started	None
https://library.example.org/ebooks-help	E-books help	INV-006	Unresolved	Not decided	Not decided	Pending	Not decided	Digital services	Open	Blocked on decision D-03

Download the template: Content migration map (XLSX) · blank CSV. Free to use under CC BY 4.0.

Reference examples: The art of redirection [13] · Using the Redirect Spreadsheet for Website Migration [14]

Decision log and governance

What it is

A decision log that records structural decisions and their reasons, and a short set of rules for who may change the structure, terms and labels later.

Decision it informs

Why the structure is the way it is, who can change it, and what triggers a review.

Typical format

Two tables. When a decision changes, keep the earlier entry and mark it superseded rather than deleting it. This page uses a lightweight version of software architecture decision records^[15]^[16]. Editor guidelines can sit alongside these rules when needed.

Made by → acted on by

Kept by the IA lead, then handed to the product or content owner; used by future teams and editors.

Ready when

Every major structural decision has a row with options, evidence and reason.
Superseded decisions are kept and marked.
Each kind of change has a named proposer and approver.
Reviews have named triggers, a schedule, or both.

Weak vs good

Weak: decisions that live only in meeting notes. Good: a dated log that links each decision to its evidence and to the deliverables it changed.

Needed for

Usually core for: redesign or consolidation, app or product, large catalogue, CMS migration or multi-site. See the reasons in the matrix

Spencer emphasizes documenting the rationale behind the IA and how it will be maintained^[17].

Decision log

ID	Decision	Options considered	Evidence	Rationale and trade-off	Decided by	Affects	Revisit if	Status
D-01	Organize the top level primarily by task, with one audience-specific exception.	By audience; by task	Card-sort findings and top-tasks research (not shown)	Most tasks are shared across audiences; Kids and teens remains an audience-specific section for services that do not fit the shared task structure.	IA lead and web steering group	N-1 to N-6	A new audience-only service area is added	Accepted
D-02	One page for hours and locations	Keep two pages; merge	INV-001 and INV-002; support questions	Duplicate content with conflicting hours	Content lead	N-2.1; migration rows for INV-001 and INV-002	Not applicable	Accepted
D-03	Where e-books help belongs	Under Borrow; under a Help section	Not yet tested	Owners disagree; a tree-test task is planned	Not decided	N-1.3; INV-006	Not applicable	Open

Governance rules

Change	Who proposes	Who approves	Where recorded	Review when
New top-level section	Any team	Web steering group	Decision log	Before the section launches
New taxonomy term	Editors	Taxonomy owner	Term record	When people often search for a variant that has no preferred term

Reference examples: Documenting Architecture Decisions [15] · About MADR: Markdown Architectural Decision Records [16]

Also part of the set

Research inputs

Stakeholder interviews, user research, support tickets, top tasks, analytics and site-search logs. They often feed the audit and the structure; on some projects the research synthesis is handed over as a deliverable in its own right. Ready when the sources and their dates are recorded and each structural decision can point to the input it used.

Search synonyms

How site search uses the taxonomy: which words people use, and which preferred term or destination each one maps to. Ready when each search term or synonym in the table maps to a preferred term or destination.

People search for	Preferred term or page	Goes to
story hour	Storytime (T-11)	N-3.2
opening times	Hours and locations	N-2.1
tech help	Digital skills workshop (T-21)	Events filtered by T-21
print	Printing and scanning	N-2.4

Object model

For applications and other object-driven systems: the main things people work with, such as orders, reports or users, and how they relate. It often shapes navigation more than a page hierarchy does. Ready when each object, its relationships and the places it appears are listed.

Ready, accepted and owned

What the handover needs

The deliverables your project uses, in editable source formats, with a record of the major decisions behind them. A PDF alone is not a maintainable source file. This IA handover is separate from the design handoff covered in From sitemap to wireframe.

Cross-deliverable acceptance checklist

Each entry above has its own "Ready when" list. These checks apply across the whole set.

Every deliverable names the decision or action it supports.
Every deliverable has a named owner while it is active; maintained deliverables also have an owner after launch.
The editable source files exist and are part of the handover, not only exported views.
IDs and labels agree across related deliverables: inventory, structure, navigation and migration map.
Unresolved decisions are marked as unresolved, with a reason and an owner.
Evidence and rationale can be traced from each structural decision to the finding or input behind it.
Related downstream deliverables reference the same current version of the structure.
Anything still changing before launch, such as the migration map, carries a version or status. Maintained deliverables such as the taxonomy continue versioning after launch.
Significant changes are recorded in the decision log.
Reviews happen on named triggers, on a schedule, or both.
If testing is planned, the decision criterion and what the team will do if the result does not meet it are agreed before the study.

Who owns what

Deliverable	Produces	Approves	Uses	Maintains after launch
Inventory and audit	Content or IA lead	Content owners	IA lead, content lead	Content team
Structure specification	IA lead	Product or content owner	Designers, developers, content owners	Product or content owner
Taxonomy and metadata	Taxonomy owner	Content owner	Editors, developers, site search	Taxonomy owner
Content model	Content strategist with a developer	Product owner	Developers, editors	Development team
Findings	Researcher	Not applicable	IA lead, approvers	Research team (archive)
Navigation specification	IA or UX designer	Product owner	Developers, designers	Web team
Migration map	Content or IA lead	Content owners	Developers, editors	Web/SEO team (redirects); map archived after verification
Decision log and governance	IA lead	Steering group	Future teams, editors	Product or content owner

Roles vary; before launch, name a person for each role that applies (produces, approves, maintains).

A test for any proposed deliverable

Before agreeing to make or pay for a deliverable, ask:

What decision does it support?
What evidence or reasoning does it carry?
Who acts on it, and in what format do they need it?
How will we know it is ready?
What does the client or the team have to supply for it?

Templates and next steps

Templates

Each XLSX has a Read me tab, the library example and a blank sheet with dropdowns. Free to use and adapt under CC BY 4.0.

Related guides

The Research and validation findings deliverable can include results from card sorting and tree testing. UXbeam runs both studies and can create an editable draft hierarchy from card-sort results for you to review and test. The other deliverables on this page are created in your own tools; the templates above are a starting point.

Start a card sort Start a tree test

Sources

Kaley, A. "Content Inventory and Auditing 101." Nielsen Norman Group, 2020.
State of Iowa Digital Experience. "How to Do a Content Audit." Digital Experience training.
Tankala, S. "Information Architecture vs. Sitemaps." Nielsen Norman Group, 2023.
Withrow, J. "Site Diagrams: Mapping an Information Space." Boxes and Arrows, 2004.
Laubheimer, P. "Taxonomy 101: Definition, Best Practices, and How It Complements Other IA Work." Nielsen Norman Group, 2022.
Isaac, A. and Summers, E. (eds.) "SKOS Simple Knowledge Organization System Primer." W3C Working Group Note, 2009.
GOV.UK. "GOV.UK Taxonomy principles." Government Digital Service, 2019.
Lovinger, R. "Content Modelling: A Master Skill." A List Apart, 2012.
Vilhauer, C. and Barker, D. "Model Your Content." In The Web Project Guide, chapter 11. Blend Interactive.
Laubheimer, P. "Local Navigation Is a Valuable Orientation and Wayfinding Aid." Nielsen Norman Group, 2021.
GOV.UK Design System. "Navigate a service." Government Digital Service.
U.S. Web Design System. "Side navigation." General Services Administration.
Mann, D. "The art of redirection." Inside GOV.UK, 2014.
Stony Brook University Web Support. "Using the Redirect Spreadsheet for Website Migration."
Nygard, M. "Documenting Architecture Decisions." 2011.
"About MADR: Markdown Architectural Decision Records." Version 4.0.0, 2024.
Spencer, D. A Practical Guide to Information Architecture, 2nd ed. UX Mastery, 2014.

Study data: UXbeam card sorting and tree testing case studies linked in the findings entry.
