What is Tree Testing in UX Design?

What is Tree Testing in UX Design?

Tree Testing is an  early-stage usability evaluation method used to assess the clarity of a product's information architecture (IA). It strips away all UI design elements and focuses only on the structure—asking real users to complete specific tasks using a simple text-based version of your site or app's hierarchy.

Note, the 'tree'  does not reflect any design elements of the proposed navigation - thus allowing to test a product in its most basic form without the influence of design and without having to design or code anything.  This method then informs the wireframing and design of screens by establishing their organization relative to each other as well as validating naming conventions.

What Makes Tree Testing So Valuable?

It's lean, fast, and revealing—especially useful before UI distractions are introduced.

When to Use Tree Testing

Tree testing fits best early in the design process, right after having gathered and synthesized requirements from stakeholders, users, and competitors. These requirements are typically synthesized during a few rounds of affinity mapping, or, when their number exceeds 15, of card sorting. For a long list of features or content or for feature / content that is known to pause findability issues (users/visitors not finding certain pages, or visiting pages or screens others than the one they are supposed to), it is recommended to run a card sorting first.

Card sorting should lead to a preliminary idea of:

• list of goals or tasks users will use the product to achieve their goals, often represented as user flows.
• the product's content and hierarchy is called an information architecture (or sitemap) and can be conveniently written down as a text outline or 'tree'

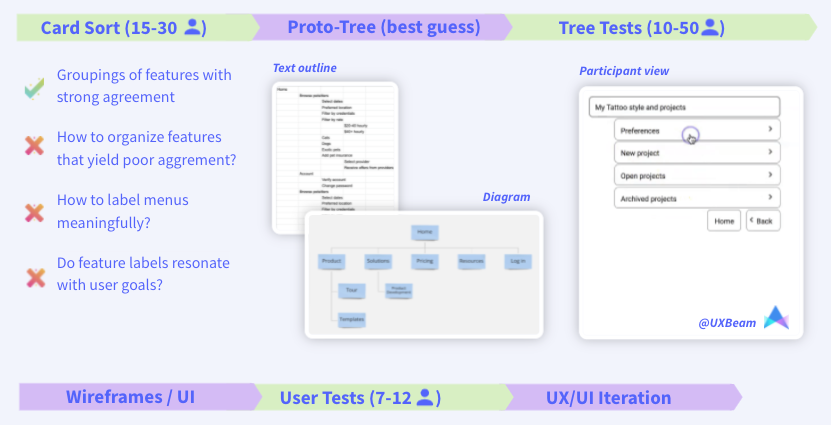

Once the key features or content categories are determined, it's time to:

• Define key user tasks and goals
• Draft your tree (a text outline of your IA) - UXbeam makes it easy to send card sorting results onto a tree testing setup in 1 click 🙌
• Run a tree test to validate findability

Because it doesn't rely on design or dev resources, it's often the first real test of your product's navigation logic.

How Tree Testing Works

Typically, 10-50 participants need to be recruited to perform the test.You give them a text-based hierarchy (your "tree") and a set of realistic, goal-oriented tasks like:

Category	Task 1	Task 2	Task 3
Wellness Mobile App (B2C)	You want to track your daily meditation streak and check your progress.	After completing a workout, you decide to log your exercise details to maintain your fitness history.	You need to set a sleep reminder to improve your bedtime routine.
Field Service Mgmt Mobile App (B2B)	Once a service call completes, you decide to update the job status so that your manager sees real‑time progress.	You need to view client details after receiving an urgent ticket so you can plan your route efficiently.	After discovering low inventory, you request more parts so you can finish the repair.
Ride‑Sharing Mobile App (B2C)	You need a ride to the airport and compare estimated arrival times.	After a long meeting, you decide to request a ride home.	You want a vehicle with extra space for your luggage.
CRM Platform Web App (B2B)	After a sales call, you decide to log client notes.	After a lead responds, you want to update its status so your forecast reflects it.	You need to generate a sales report in preparation for your review meeting.
Online Retail Web App (B2C)	You want to search for a gift under $25.	After reading product reviews, you decide to check stock availability.	You wonder if gift cards are available for your friend.
Streaming Media Web App (B2C)	You want to watch a thriller and browse curated lists.	After pausing mid‑episode, you need to resume from your last timestamp.	You decide to add the new series to your watchlist.
Driver's License Renewal Portal (Gov)	You need to renew your driver's license now that you've turned 18.	You wonder if your new address is updated on your license information.	After receiving a reminder, you schedule a renewal appointment to stay compliant.
City Maintenance Request Portal (Gov)	You decide to report a pothole so the city can fix it.	A streetlight is broken and you want to upload a photo for faster repair.	You need to submit a graffiti cleanup request to improve community safety.

Based on such task instructions, participants will try to find the correct branch of or path in the tree.  You then analyze their path efficiency, first clicks, and task success rates. Most tasks should be found without hesitation and backtracking. A tree test is ready for qualitative feedback and wireframing when 80% of the tasks are Direct to first-time users.

UXbeam provides Pre-Test Data for every test, making it easy to fix any obvious task instruction issues 🙌. Once this is acheived, just share the test with your own participants and gather inputs from 10-50 persons representative of your target user.

Examples of Tree Testing in Action

🔍 Case Study: Health Management App

A UX team tested early IA for a symptom tracking app. Users repeatedly failed to locate the "share data with doctor" feature. Tree testing revealed the feature was nested under "Account Settings"—a mismatch with user expectations. After moving it under "Health Profile," task success jumped from 42% to 88%.

🛒 Case Study: E-commerce Prototype

A product team working on a DIY furniture app used tree testing to compare two IA options. Version A had higher task completion but more backtracking. Version B had slightly lower completion but faster first-click accuracy. This led to a hybrid IA and cut user friction by 35% in follow-up usability tests.

Advanced Tips for Getting More from Tree Tests

• Use job story format for task writing: "You are waiting at the airport [context, situation], and want to find a lounge [goal, intent], to relax and watch a movie [outcome, motivation]"
• Aim for 10–15 tasks per test, spread across different parts of your tree
• Look for task directness: Was the correct location found without backtracking?
• Use leadingness detection to eliminate biased instructions - UXbeam's 1-screen setup makes it easy to spot and fix leading terms 🙌

Why UX Teams Should Prioritize Tree Testing

Tree testing is one of the  most cost-effective ways to validate your product's navigation before any wireframe is designed. Research shows that early IA issues cause up to 45% of user task failures in live products. Waiting until hi-fi prototype or development stages makes these problems more costly and complex to fix.

How worthwhile is tree optimization? 2 words: cost-effective and accessible. Waiting for a mid-fi UI prototype to assess feature or content findability is:

• time-consuming to fix (the team may have to remove or rearrange some screens, change labels along user paths, etc.).
• pathfinding issues WILL compound with other design issues such as layout, contrasts, illustrations, etc.

In contrast, tree testing is incredibly accessible to different team roles for the very reason that it only takes a text outline of the product (the tree or architecture) and a scenario of tasks or use cases users will be expected to achieve with the product. Arguably, anyone armed with these 2 assets, tree testing data and a knack for copywriting can ace that foundation stage of UX design: UX designers, PMs, Developers can equally nail this.

Industry trend: Teams using early evaluative testing methods like tree testing and card sorting report 30–60% faster iteration cycles during design sprints.

For UX designers, PMs, and researchers working in fast-paced environments, tree testing ensures that time is spent building the right structure—not just the right interface.

Frequently Asked Questions

• What's the difference between tree testing and card sorting? Card sorting helps define the structure. Tree testing validates it.
• Is tree testing only for websites? No—tree testing works just as well for mobile apps, SaaS platforms, and even in‑product menus.
• Do I need design screens? Not at all. Tree testing is based on pure structure. No wireframes or UI needed.

Bottom Line

Running a tree test before prototyping is like writing a screenplay before filming—it saves time, sharpens clarity, and avoids messy redesigns. With tools like UXbeam, you can test a full navigation structure, recruit testers, and optimize IA in under an hour.

🎬 Don't build your product blind. Run a tree test, find the friction, and design smarter.
